MDPE Elbow 90 Female Threaded Fitting

Elbow 90 Female Thread

Available in sizes 20 – 110mm

Manufactured from high-quality materials

UK REG4 Compliant

Fully Recyclable

Eco friendly complying with LEED standard

Pressure rated to 16 bar

Operating Temperature: 20°C @ 16 bar, 45°C @ 10.8 bar, 70°C @ 3.4bar

Category:

Description

The MDPE elbow with female thread fitting is typically used to change the direction of an MDPE pipe by 90 degrees at a joint, with one end of the fitting having a female threaded connection.

The female threaded end of the MDPE elbow fitting is designed to be connected to a male threaded fitting, such as a valve or a tee, using PTFE tape or a thread sealant to ensure a watertight seal. The other end of the MDPE elbow fitting is designed to be connected to an MDPE pipe using a compression fitting.

Made from high-quality polypropylene material, this fitting is resistant to corrosion and impact damage, making it ideal for use in industrial, commercial, and residential applications.

Materials

Body
High-impact black Polypropylene, UV stabilized
with long-term heat ageing		 Nut
High impact Blue Polypropylene stabilized to UV ray exposition
Clinching Ring
Acetal resin (POM)		 Thrust Ring
High-impact black Polypropylene, UV stabilized with long-term heat ageing
Gasket
Black nitrile rubber (NBR)

Technical Specification

Product Code dxG (mm x Inch) D (mm) L (mm) I (mm) L1 (mm)
352140 20 x 1/2″ 47 71.5 61.5 43
352141 20 x 3/4″ 47 71.5 61.5 44
352142 25 x 1/2″ 54 81 42 50
352143 25 x 3/4″ 54 81 78.5 51.5
352144 25 x 1″ 54 81 42 53.5
352145 32 x 3/4″ 63.5 90 72.5 52
352146 32 x 1″ 63.5 90 72.5 53.5
352147 40 x 1″ 76 107 87 63
352148 40 x 1 1/4″ – – – –
352149 50 x 1 1/2″ 91.5 123 97.5 72.5
352150 50 x 2″ 91.5 123 97.5 74.5
352151 63 x 2″ 110.5 147 112.5 84
352152 75 x 2 127.5 168 129 100
352153 75 x 2 1/2″ 127.5 168 129 100
352154 90 x 3″ 150 201 153.5 115
352139 110 x 4″ 176.5 240 183.5 128

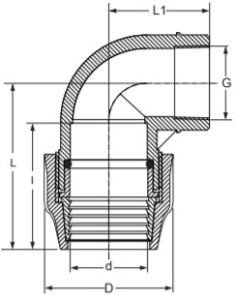

MDPE Elbow 90 Female Threaded Technical Breakdown Drawing

Installation

  1. Insert a pipe liner into the pipe
  2. Loosen the retaining nut without removing it to ensure easy insertion
  3. Gently insert the pipe into the fitting making sure to push past the o-ring seal
  4. Tighten the nut by hand then finish with a strap wrench
