Plastica Alfa UK | MDPE Fittings | Compression Fittings
Available in sizes 20 – 110mm
Manufactured from high-quality materials
UK REG4 Compliant
Fully Recyclable
Eco friendly complying with LEED standard
Pressure rated to 16 bar
Operating Temperature: 20°C @ 16 bar, 45°C @ 10.8 bar, 70°C @ 3.4bar

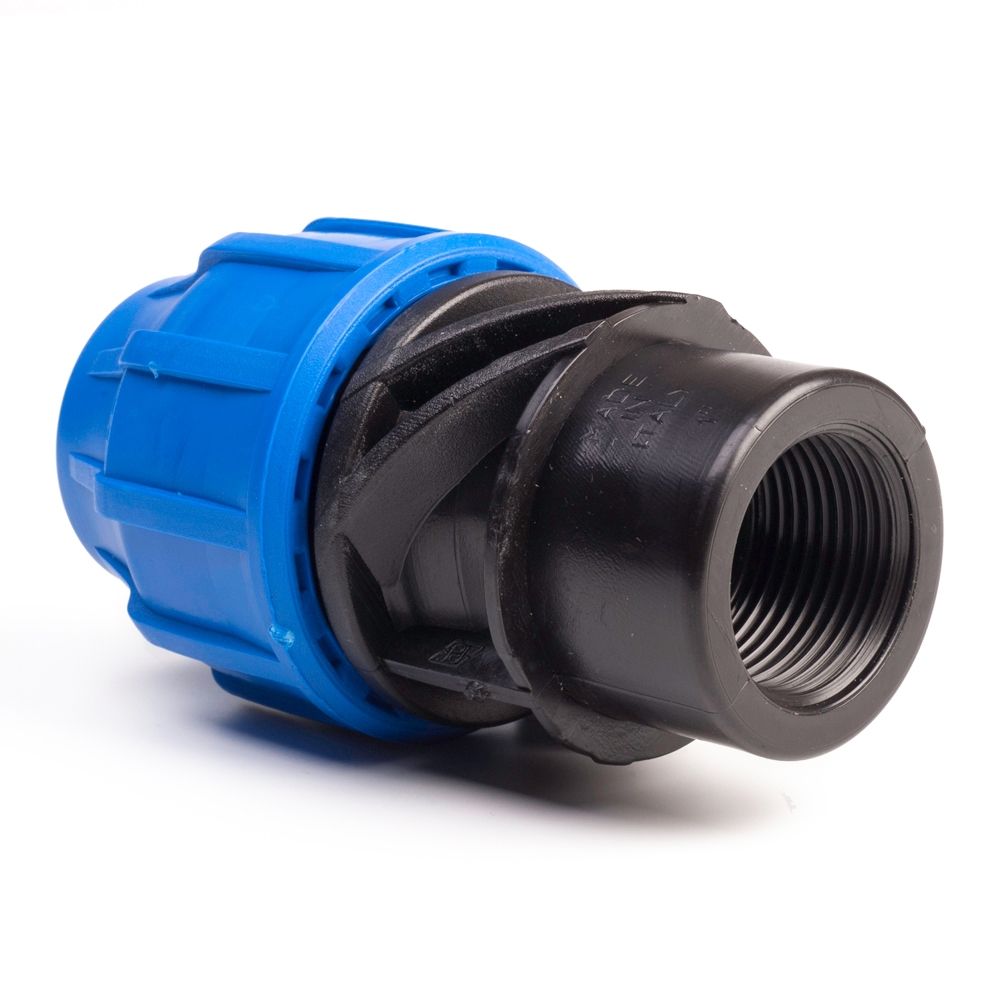

The MDPE female adaptor is a type of fitting used in MDPE (medium-density polyethylene) piping systems. It is specifically designed to connect MDPE pipes to threaded fittings or equipment that has a male thread, such as valves, pumps, and filters.
Made from high-quality polypropylene material, this fitting is resistant to corrosion and impact damage, making it ideal for use in industrial, commercial, and residential applications.
 |
Body High-impact black Polypropylene, UV stabilized with long-term heat ageing |
 |
Nut High impact Blue Polypropylene stabilized to UV ray exposition |
 |
Clinching Ring Acetal resin (POM) |
 |
Thrust Ring High-impact black Polypropylene, UV stabilized with long-term heat ageing |
 |
Gasket Black nitrile rubber (NBR) |
| Product Code | dxG (mm x Inch) | D (mm) | L (mm) | I (mm) | H (mm) |
|---|---|---|---|---|---|
| 352095 | 20 x 1/2″ | 47 | 94.5 | 70.5 | 18 |
| 352096 | 20 x 3/4″ | 47 | 94.5 | 70.5 | 18 |
| 352097 | 25 x 1/2″ | 54 | 100 | 78.5 | 18 |
| 352098 | 25 x 3/4″ | 54 | 100 | 78.5 | 18 |
| 352099 | 25 x 1″ | 54 | 102 | 78.5 | 20 |
| 352100 | 32 x 3/4″ | 63.5 | 106 | 84.5 | 17 |
| 352101 | 32 x 1″ | 63.5 | 108.5 | 84.5 | 19.5 |
| 352102 | 40 x 1″ | 76 | 128 | 100 | 20 |
| 352103 | 40 x 1 1/4″ | 76 | 131.5 | 100 | 23.5 |
| 352104 | 40 x 1 1/2″ | 76 | 131.5 | 100 | 23.5 |
| 352105 | 50 x 1 1/2″ | 91.5 | 145 | 114 | 23.5 |
| 352106 | 50 x 2″ | 91.5 | 147.5 | 114 | 26 |
| 352107 | 63 x 1 1/2″ | 110.5 | 157 | 127.5 | 23.5 |
| 352108 | 63 x 2″ | 110.5 | 159.5 | 127.5 | 26 |
| 352109 | 75 x 2 1/2″ | 127.5 | 176 | 143 | 26 |
| 352110 | 75 x 3″ | 127.5 | 178 | 143 | 28 |
| 352111 | 90 x 3″ | 150 | 226 | 182.5 | 35 |
| 352093 | 110 x 3″ | 176.5 | 252 | 211 | 35 |
| 352094 | 110 x 4″ | 176.5 | 264 | 211 | 43 |
