Ice Valve

Available in sizes 1 1/4″ – 2″

Manufactured from high-quality materials

Eco friendly complying with LEED standard

Pressure rated to 16 bar

Operating Temperature: -20°C – 75°C

Category:

Description

These polypropylene ball valves are the perfect choice for water and irrigation applications, even in the harshest of weather conditions. Their innovative design ensures exceptional performance in extreme temperature ranges, preventing fluid from freezing inside the valve and the subsequent expansion.

Not only do these valves withstand freezing and thawing cycles with ease, but they also feature a single-body construction crafted from a special compound, providing durability and versatility that outshines other plastic valves.

With materials such as polypropylene copolymer for the body, nylon PA6 for the handle, and brass for the ball, these valves are both frost and ice-resistant, with a pressure rating of up to 16 bar. Their operating temperature range spans from -20°C to 75°C, and they come equipped with female BSP threads for easy installation.

Materials

Polypropylene copolymer (body), nylon PA6 (handle), brass (ball)

Technical Specification

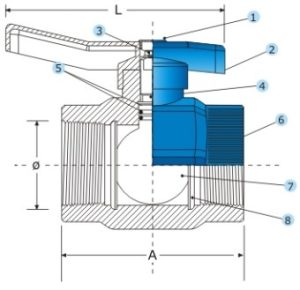

Product Code Thread Size (inch) A (mm) H (mm) L (mm)
350745 1 1/4 100.5 75 75
350746 1 1/2 116 101 101
350747 2 134.5 106 106
